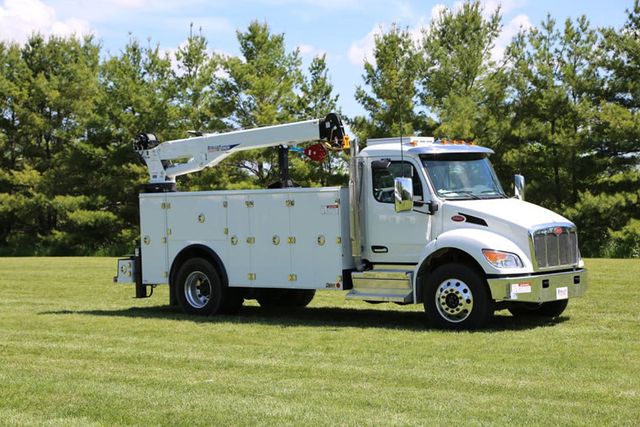

Stellar TMAX2-14 Mechanics Body:

• Aluminum Side Packs
• Aluminum Doors
• Steel Crane Compartment
• All compartments raised to 60?
• Flush front bulkhead
• Torsion box understructure with isolated crane compartment
• Master-Lock system
• Exterior LED DOT light package
• 22?D X 60?H side packs
• 168? long 21? work bench bumper with thru compartment
• (6) recessed cargo tie-downs
• (2) rear mounted grab handles
• Dual-seal automotive type compartment weather seal
• Rubber fenderettes
• Overlapped doors on SS1V / CS1V
• Overlapped doors on horizontal compartments
• 12? fold down aluminum tailgate (painted black)
• 2 & 3-point stainless steel compression latches
• Stainless steel "Billet Style" hinges
• Spring loaded door stops
• Pintle hitch mount
• Prime painted
• Undercoated

12630 Hydraulic Crane:

• Crane Rating : 77 800 ft-lb
• Max Lifting Capacity: 12 000 lbs @ 6' 5?
• Maximum Horizontal Reach: 30' from CL of crane
• Maximum Vertical Lift: 31' 9? from crane base
• Boom Elevation: -10* to +80*
• CDTpro tm Control System w/Range Finder

46P Air Compressor:

• Output Capacity: 46 cfm @ 175 psi
• Max. pressure: 175 psi
• Cylinders: 4-cylinder 2-stage
• Electrical control: 12 VDC @ 20 amps
• 22 gallon air tank with fittings hose kit mounting bracket
• FLR system installed - 1 outlet for air hose (filter lubricator regulator).
